BW Cable Gland
Rupam BW 4 part type brass indoor cable gland is used with all types of single wire armour (SWA) cable providing mechanical cable retention and electrical continuity through armour wire termination. The BW design offers the benefit of a longer body to protect the armour wires from impact. This cable glands is designed and tested to BS 6121:2005 PART 1. It meets the requirement of EN 50262:1999 and IEC 62444.

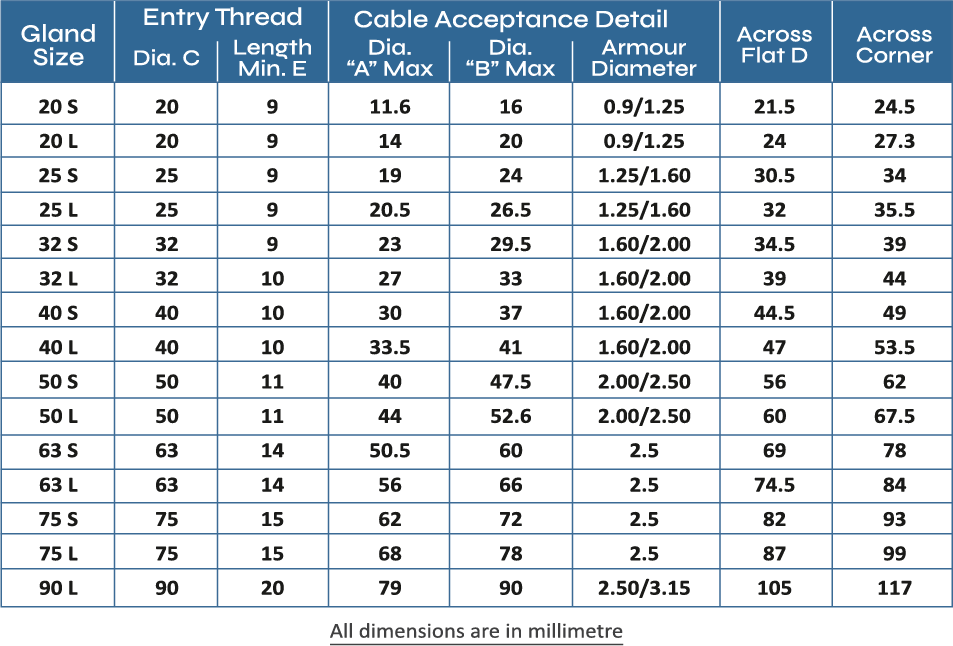

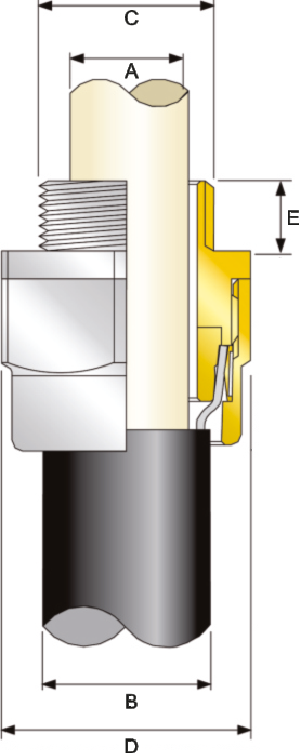

Technical Information
-
Type:BW 4 Part
-
Design Specification:BS 6121: PART1: 1989
-
Cable Gland Material:Brass
-
Cable Type:Single Wire Armour (SWA)
-
Ingress Protection Rating:IP 54
Available Accessories
- Gland
- Shroud
- Earth Tag
- Lock Nut

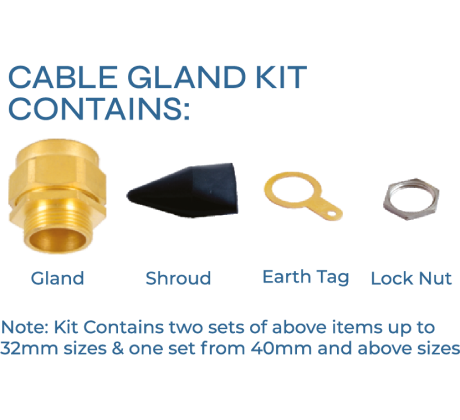

Cable Gland Kit Contains
Kit contains two sets of above items up to 32mm sizes & one set from 40mm and above sizes
