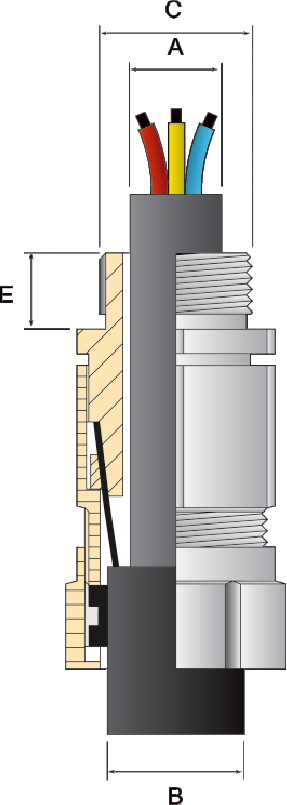

CW Cable Gland
Rupam CW type brass indoor and outdoor cable gland is used with all types of single wire armour (SWA) cable providing mechanical cable retention and electrical continuity through armour wire termination. Clamping ring allows the cable to be easily disconnected from the equipment, for maintenance etc. This feature also provides remote also known as off procedures when the termination is to be conducted in areas restricted access. This cable glands is designed and tested as per BS 6121:1989. It meets the requirement of EN 50262: 1999 and IEC 62444.

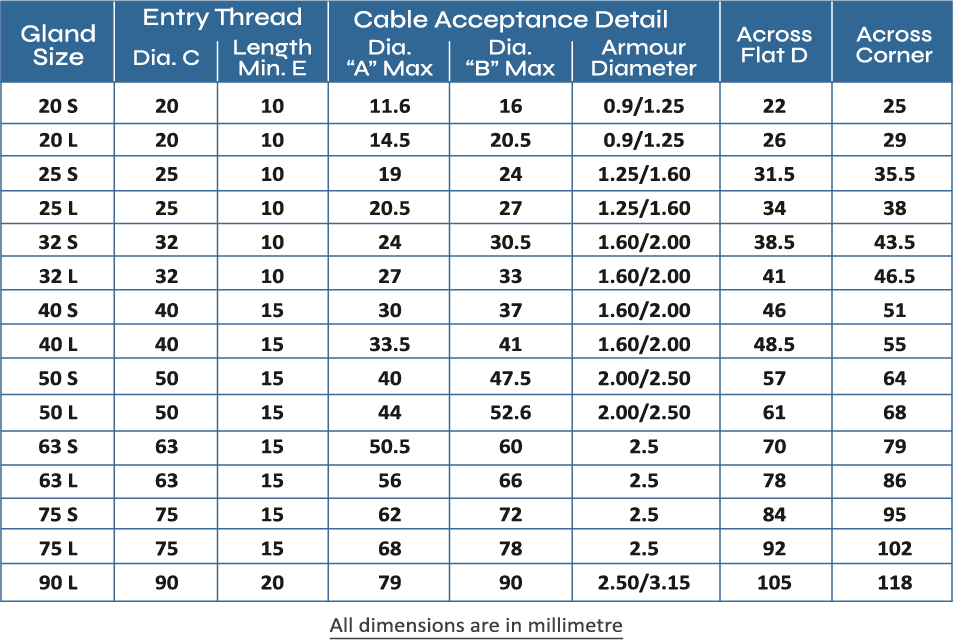

Technical Information
-
Type:CW
-
Design Specification:BS 6121: PART1: 1989
-
Cable Gland Material:Brass
-
Cable Type:Single Wire Armour (SWA)
-
Ingress Protection Rating:IP 66
Available Accessories
- Gland
- Shroud
- Earth Tag
- Lock Nut

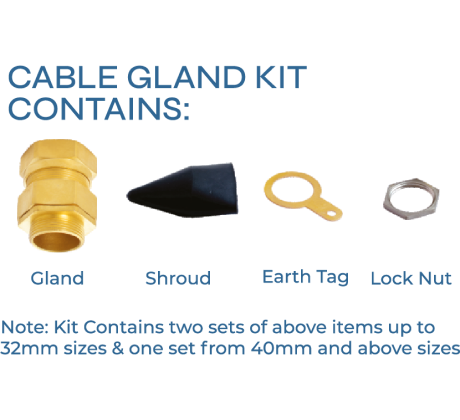

Cable Gland Kit Contains
Kit contains two sets of above items up to 32mm sizes & one set from 40mm and above sizes
