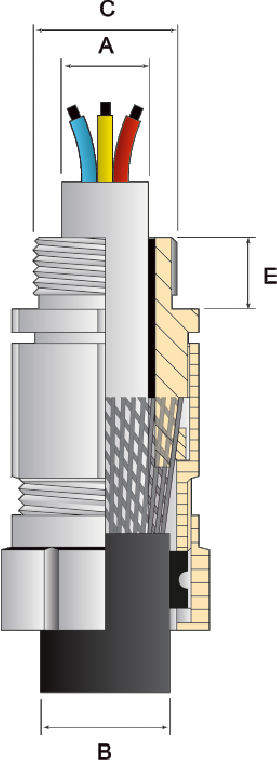

CX Cable Gland
Rupam CX type brass indoor and outdoor cable gland is used with all types of wire braid armour, strip armour, pliable wire armour & steel tape armour (STA) cable. It also provides mechanical cable retention and electrical continuity through armour wire termination. An armour cone clamping ring arrangements allows the cable to be easily disconnected from the equipment, for maintenance etc. This feature also facilities remote make off procedures when the termination is to be conducted in areas of restricted access. This cable glands is designed as per BS 6121: PART 1:1989 and IEC 62444.

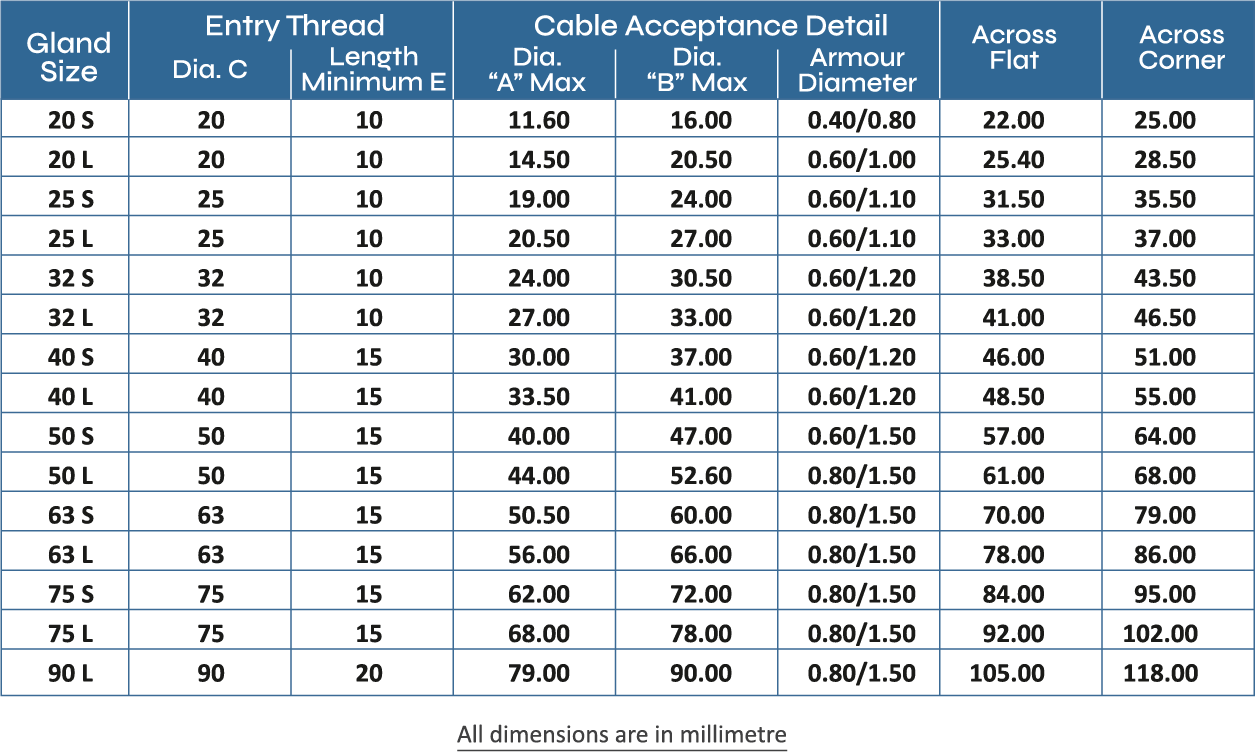

Technical Information
-
Type:CX
-
Design Specification:BS 6121: PART1: 1989
-
Cable Gland Material:Brass
-
Cable Type:Wired Braid Armour, Screened Flexible Wired Braid (Eg. CY/SY), Pilable Wired Armour (PWA), Steel Tape Armour (STA)
-
Ingress Protection Rating:IP 66
Available Accessories
- Gland
- Shroud
- Earth Tag
- Lock Nut

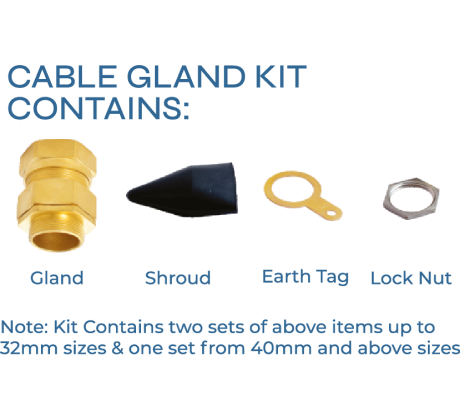

Cable Gland Kit Contains
Kit contains two sets of above items up to 32mm sizes & one set from 40mm and above sizes
