CXT Cable Gland

Rupam CXT type brass indoor and outdoor cable gland is unarmoured cable gland. This gland provides sealing on the cable outer sheath. It also provides mechanical cable retention and electrical continuity through internal pig tail termination of the flexible wire braid. The Rupam CXT range of industrial cable glands is designed as per BS 6121:PART 1:1989 and IEC 62444.

Inquire Now
Technical Information
  • Type:
    CXT
  • Design Specification:
    BS 6121: PART1 : 1989
  • Cable Gland Material:
    Brass
  • Cable Type:
    Unarmoured
  • Ingress Protection Rating:
    IP 54
Available Accessories
  • Gland
  • Shroud
  • Earth Tag
  • Lock Nut

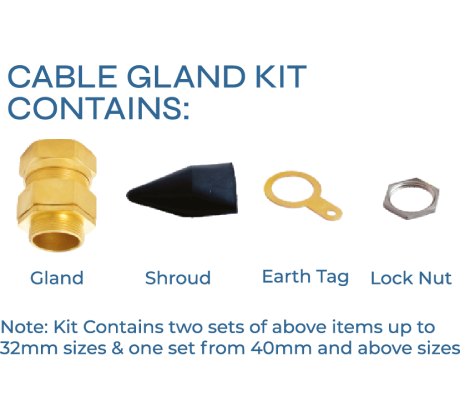

Cable Gland Kit Contains

Kit contains two sets of above items up to 32mm sizes & one set from 40mm and above sizes
