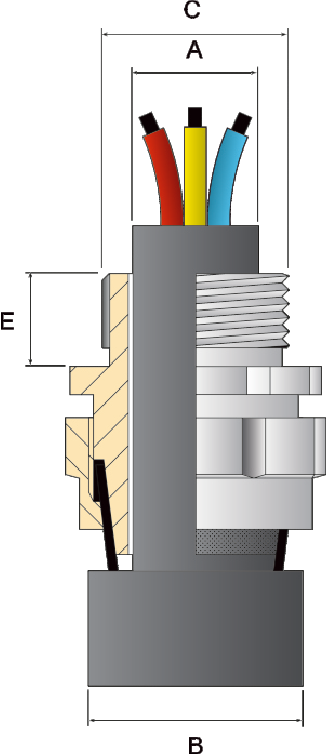

BW Knurling Cable Gland
Rupam BW type brass indoor cable gland for use with all types of single wire armour (SWA) cable providing mechanical cable retention and electrical continuity through armour wire termination. This cable glands is designed and tested as per BS 6121:2005 part 1. It meets the requirement of EN 50262:1999 and IEC 62444.
Technical Information
-
Type:A2
-
Design Specification:BS 6121: PART1: 1989
-
Cable Gland Material:Brass
-
Cable Type:Unarmoured
-
Ingress Protection Rating:IP 54
Available Accessories
- Gland
- Shroud
- Earth Tag
- Lock Nut
Cable Gland Kit Contains
Kit contains two sets of above items up to 32mm sizes & one set from 40mm and above sizes
